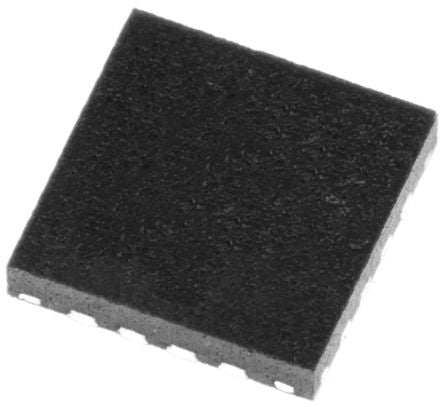

Microchip PIC16F1455-I/ML, 8bit PIC Microcontroller, 48MHz, 14 kB Flash, 16-Pin QFN [PIC16F1455-I/ML]; 146-0211
by Microchip
0₫
Mã kho: 1460211
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 16 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 14 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 1.024 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 5 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2.3 → 5.5 V |
| Number of I2C Channels | 1 |
| Number of Timers | 2 |
| Pulse Width Modulation | 1(2 x 10 bit) |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| PWM Resolution | 10bit |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| ADCs | 1(5 x 10 bit) |
| ADC Resolution | 10bit |
| Timer Resolution | 8 bit, 16 bit |
| PWM Channels | 2 |
| Width | 4mm |
| Number of USART Channels | 1 |
| Timers | 1(1 x 16 bit), 1(2 x 8 bit) |
| Dimensions | 4 x 4 x 0.95mm |
| Length | 4mm |
| Instruction Set Architecture | RISC |
| Height | 0.95mm |
