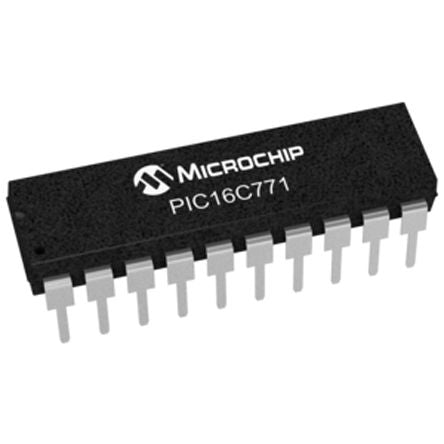

Microchip PIC16C771-I/P, 8bit PIC Microcontroller, 20MHz, 7 kB OTP EEPROM, 20-Pin PDIP [PIC16C771-I/P]; 159-7462
by Microchip
0₫
Mã kho: 1597462
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC16C |
Package Type | PDIP |
Mounting Type | Through Hole |
Pin Count | 20 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 7 kB |
Maximum Frequency | 20MHz |
RAM Size | 256 B |
Number of PWM Units | 1 |
ADC Channels | 6 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 2.5 → 5.5 V |
Number of Timers | 3 |
Number of I2C Channels | 1 |
Width | 6.6mm |
Height | 3.68mm |
Timers | 1 x 16 bit, 2 x 8 bit |
Program Memory Type | OTP EEPROM |
Dimensions | 26.42 x 6.6 x 3.68mm |
Number of ADC Units | 1 |
Pulse Width Modulation | 1 (ECCP) (10 bit) |
Maximum Operating Temperature | +85 °C |
Length | 26.42mm |
ADCs | 6 (12 bit) |
Instruction Set Architecture | RISC |
PWM Resolution | 10bit |
Timer Resolution | 8 bit, 16 bit |
Minimum Operating Temperature | -40 °C |
ADC Resolution | 12bit |
