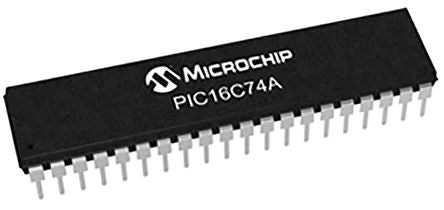

Microchip PIC16C74A-20/P, 8bit PIC16C Microcontroller, 20MHz, 7 kB OTP, 40-Pin PDIP [PIC16C74A-20/P]; 165-4081
by Microchip
0₫
Mã kho: 1654081
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC16C |
Package Type | PDIP |
Mounting Type | Through Hole |
Pin Count | 40 |
Device Core | PIC16C |
Data Bus Width | 8bit |
Program Memory Size | 7 kB |
Maximum Frequency | 20MHz |
RAM Size | 192 B |
Number of PWM Units | 2 |
ADC Channels | 8 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 2.5 → 6 V |
Dimensions | 52.197 x 13.97 x 4.064mm |
Timers | 1 x 16 bit, 2 x 8 bit |
Number of USART Channels | 1 |
Width | 13.97mm |
Height | 4.064mm |
Timer Resolution | 8 bit, 16 bit |
ADCs | 1(8 x 8 bit) |
Length | 52.2mm |
Maximum Operating Temperature | +70 °C |
Number of ADC Units | 1 |
Number of I2C Channels | 1 |
Number of Timers | 3 |
Number of UART Channels | 1 |
Program Memory Type | OTP |
Pulse Width Modulation | 2 x 10 bit |
PWM Resolution | 10bit |
Instruction Set Architecture | RISC |
ADC Resolution | 8bit |
Minimum Operating Temperature | 0 °C |
