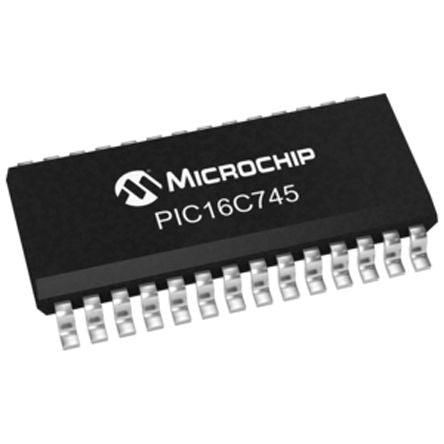

Microchip PIC16C745-I/SO, 8bit PIC Microcontroller, 24MHz, 8K x 14 words EPROM, 28-Pin SOIC [PIC16C745-I/SO]; 379-2768
by Microchip
0₫
Mã kho: 3792768
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16C |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 28 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 8K x 14 words |
| Maximum Frequency | 24MHz |
| RAM Size | 256 B |
| USB Channels | 1 x Device |
| Number of PWM Units | 2 |
| ADC Channels | 5 |
| Typical Operating Supply Voltage | 4.35 → 5.25 V |
| Dimensions | 18.08 x 7.59 x 2.39mm |
| Program Memory Type | EPROM |
| Number of Timers | 3 |
| ADC Resolution | 8bit |
| Timers | 1 x 16 bit, 2 x 8 bit |
| Number of USART Channels | 1 |
| Height | 2.39mm |
| Timer Resolution | 8 bit, 16 bit |
| Instruction Set Architecture | RISC |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 10bit |
| Width | 7.59mm |
| ADCs | 5 x 8 bit |
| Length | 18.08mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Pulse Width Modulation | 2(10 bit) (CCP) |
