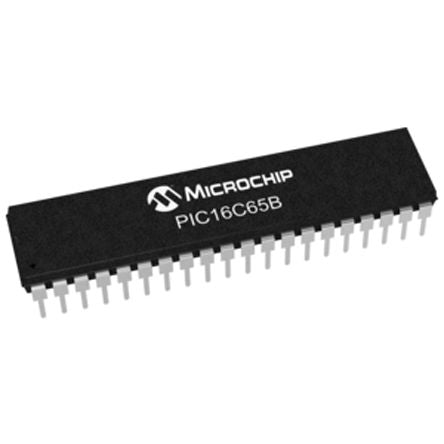

Microchip PIC16C65B-20/P, 8bit PIC Microcontroller, 20MHz, 4K x 14 words EPROM, 40-Pin PDIP [PIC16C65B-20/P]; 467-1088
by Microchip
0₫
Mã kho: 4671088
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16C |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 40 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 4K x 14 words |
| Maximum Frequency | 20MHz |
| RAM Size | 192 B |
| Number of PWM Units | 2 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 4 → 5.5 V |
| Length | 52.45mm |
| Maximum Operating Temperature | +70 °C |
| Width | 14.22mm |
| Pulse Width Modulation | 2(10 bit) (CCP) |
| Instruction Set Architecture | RISC |
| Minimum Operating Temperature | 0 °C |
| Program Memory Type | EPROM |
| Dimensions | 52.45 x 14.22 x 4.06mm |
| Number of I2C Channels | 1 |
| Number of Timers | 3 |
| Timers | 1 x 16 bit, 2 x 8 bit |
| Number of USART Channels | 1 |
| Height | 4.06mm |
| Timer Resolution | 8 bit, 16 bit |
| PWM Resolution | 10bit |
