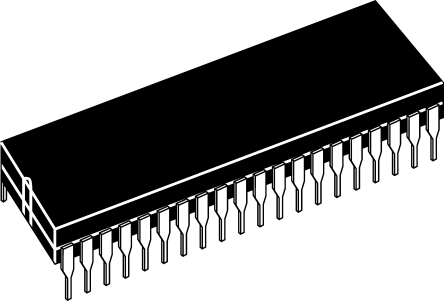

Microchip PIC16C65B-04/P, 8bit PIC Microcontroller, 4MHz, 4K x 14 words EPROM, 40-Pin PDIP [PIC16C65B-04/P]; 328-2485
by Microchip
0₫
Mã kho: 3282485
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC16C |
Package Type | PDIP |
Mounting Type | Through Hole |
Pin Count | 40 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 4K x 14 words |
Maximum Frequency | 4MHz |
RAM Size | 192 B |
Number of PWM Units | 2 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 4 → 5.5 V |
Dimensions | 52.45 x 14.22 x 4.06mm |
Program Memory Type | EPROM |
Number of Timers | 3 |
Number of I2C Channels | 1 |
Timers | 1 x 16 bit, 2 x 8 bit |
Number of USART Channels | 1 |
Height | 4.06mm |
Timer Resolution | 8 bit, 16 bit |
PWM Resolution | 10bit |
Minimum Operating Temperature | 0 °C |
Width | 14.22mm |
Length | 52.45mm |
Maximum Operating Temperature | +70 °C |
Instruction Set Architecture | RISC |
Pulse Width Modulation | 2(10 bit) (CCP) |
