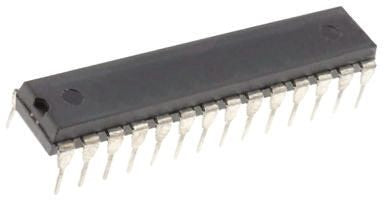

Microchip PIC16C62B-04/SP, 8bit PIC Microcontroller, 4MHz, 2K x 14 words EPROM, 28-Pin SPDIP [PIC16C62B-04/SP]; 328-2384
by Microchip
0₫
Mã kho: 3282384
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC16C |
Package Type | SPDIP |
Mounting Type | Through Hole |
Pin Count | 28 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 2K x 14 words |
Maximum Frequency | 4MHz |
RAM Size | 128 B |
Number of PWM Units | 1 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 4 → 5.5 V |
Number of Timers | 3 |
Number of I2C Channels | 1 |
Instruction Set Architecture | RISC |
Program Memory Type | EPROM |
Dimensions | 35.18 x 7.49 x 3.43mm |
Timers | 1 x 16 bit, 2 x 8 bit |
Height | 3.43mm |
Timer Resolution | 8 bit, 16 bit |
PWM Resolution | 10bit |
Pulse Width Modulation | 1(10 bit) (CCP) |
Width | 7.49mm |
Length | 35.18mm |
Maximum Operating Temperature | +70 °C |
Minimum Operating Temperature | 0 °C |
