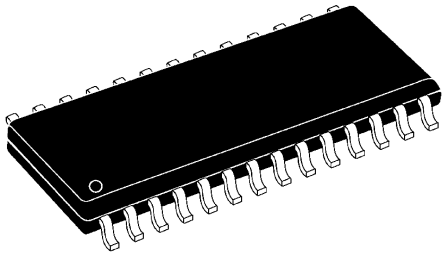

Microchip PIC16C57C-04/SO, 8bit PIC Microcontroller, 4MHz, 2K x 12 words EPROM, 28-Pin SOIC [PIC16C57C-04/SO]; 144-9119
by Microchip
0₫
Mã kho: 1449119
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16C |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 28 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 2K x 12 words |
| Maximum Frequency | 4MHz |
| RAM Size | 72 B |
| Typical Operating Supply Voltage | 2.5 → 5.5 V |
| Length | 18.08mm |
| Maximum Operating Temperature | +70 °C |
| Number of Timers | 1 |
| Height | 2.39mm |
| Width | 7.59mm |
| Timers | 1 x 8 bit |
| Minimum Operating Temperature | 0 °C |
| Dimensions | 18.08 x 7.59 x 2.39mm |
| Instruction Set Architecture | RISC |
| Timer Resolution | 8bit |
| Program Memory Type | EPROM |
