![Microchip PIC12F683T-I/SN 1772949](http://nguyenxuong.com/cdn/shop/products/R1772949-01_443x444.jpg?v=1594401035)

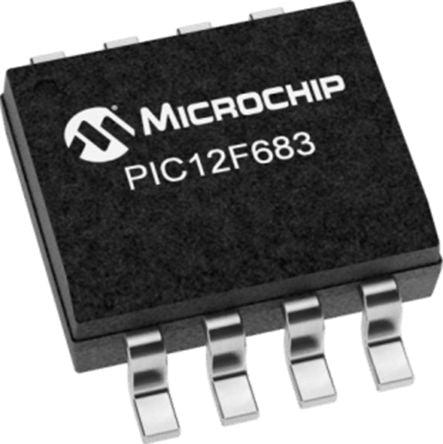

Microchip Technology PIC12F683T-I/SN, 8bit PIC Microcontroller, 20MHz, 3.5 kB Flash, 8-Pin SOIC [PIC12F683T-I/SN]; 177-2949
by Microchip
0₫
Mã kho: 1772949
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC12F |
Package Type | SOIC |
Mounting Type | Surface Mount |
Pin Count | 8 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 3.5 kB |
Maximum Frequency | 20MHz |
RAM Size | 128 B |
Number of PWM Units | 1 |
ADC Channels | 4 |
Typical Operating Supply Voltage | 5.5 (Maximum) V |
Length | 4.9mm |
Maximum Operating Temperature | +85 °C |
Number of Timers | 2 |
ADCs | 1 (4 x 10 bit) |
Instruction Set Architecture | RISC |
Pulse Width Modulation | 1 (1 x 10 bit) |
PWM Resolution | 10bit |
Dimensions | 4.9 x 3.9 x 1.5mm |
Minimum Operating Temperature | -40 °C |
Timers | 1 (1 x 16 bit), 1 (2 x 8 bit) |
ADC Resolution | 10bit |
Number of ADC Units | 1 |
Program Memory Type | Flash |
Width | 3.9mm |
Timer Resolution | 8 bit, 16 bit |
Height | 1.5mm |
PWM Channels | 1 |
