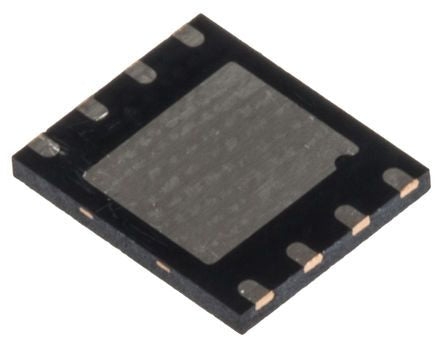

Microchip PIC12F683-I/MF, 8bit PIC Microcontroller, 20MHz, 2048 x 14 words, 256 B Flash, 8-Pin DFN-S [PIC12F683-I/MF]; 666-8558
by Microchip
0₫
Mã kho: 6668558
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC12F |
| Package Type | DFN-S |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 256 B, 2048 x 14 words |
| Maximum Frequency | 20MHz |
| RAM Size | 128 B |
| Number of PWM Units | 1 |
| ADC Channels | 4 |
| Typical Operating Supply Voltage | 2 → 5.5 V |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 10bit |
| Number of Timers | 3 |
| ADC Resolution | 10bit |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 4.92 x 5.99 x 0.95mm |
| Program Memory Type | Flash |
| Timer Resolution | 8 bit, 16 bit |
| Height | 0.95mm |
| Timers | 1 x 16 bit, 2 x 8 bit |
| Width | 5.99mm |
| Pulse Width Modulation | 1(10 bit) (CCP) |
| ADCs | 4 x 10 bit |
| Length | 4.92mm |
