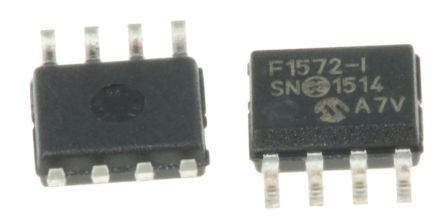

Microchip PIC12F1572-I/SN, 8bit PIC Microcontroller, 16MHz, 3.5 kB Flash, 8-Pin SOIC [PIC12F1572-I/SN]; 165-2001
by Microchip
0₫
Mã kho: 1652001
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC12F |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 3.5 kB |
| Maximum Frequency | 16MHz |
| RAM Size | 256 B |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 4 |
| Typical Operating Supply Voltage | 2.3 → 5.5 V |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| ADCs | 1 (4 x 10 bit) |
| Length | 4.9mm |
| ADC Resolution | 10bit |
| Maximum Operating Temperature | +85 °C |
| Height | 1.5mm |
| Pulse Width Modulation | 1 (3 x 16 bit) |
| Program Memory Type | Flash |
| Dimensions | 4.9 x 3.9 x 1.5mm |
| Timers | 1(2 x 8 bit), 1(4 x 16 bit) |
| Timer Resolution | 8 bit, 16 bit |
| Number of USART Channels | 1 |
| Number of Timers | 6 |
| PWM Channels | 3 |
| Width | 3.9mm |
