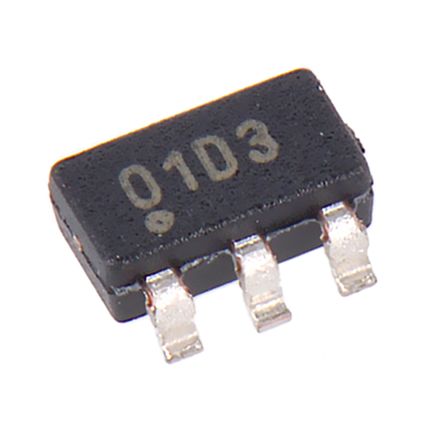

MTCH101T-I/OT Microchip, Capacitive Touch Sensor, 2 → 5.5 V 6-Pin SOT-23 [MTCH101T-I/OT]; 861-0591
by Microchip
0₫
Mã kho: 8610591
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Type | Proximity Sensor |
| Maximum Output Current | 25mA |
| Output Type | Open Drain |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Pin Count | 6 |
| Maximum Supply Current | 80 mA |
| Dimensions | 3.1 x 1.8 x 1.3mm |
| Height | 1.3mm |
| Length | 3.1mm |
| Maximum Operating Temperature | +85 °C |
| Maximum Operating Supply Voltage | 5.5 V |
| Minimum Operating Temperature | -40 °C |
| Width | 1.8mm |
| Minimum Operating Supply Voltage | 2 V |
