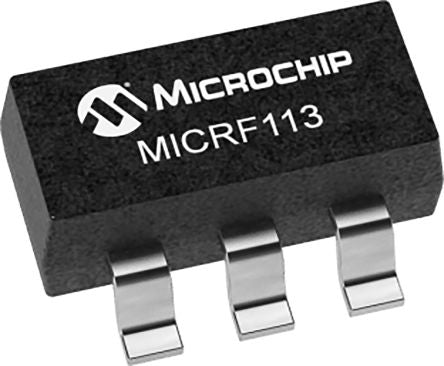

300 to 450MHz ASK +10dBm, 1.8V to 3.6V T [MICRF113YM6-TR]; 177-2945
by Microchip
0₫
Mã kho: 1772945
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Modulation Technique | ASK |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Pin Count | 6 |
| Dimensions | 2.9 x 1.75 x 1.3mm |
| Length | 2.9mm |
| Width | 1.75mm |
| Height | 1.3mm |
| Maximum Operating Band 1 Frequency | 450MHz |
| Maximum Operating Supply Voltage | 3.6 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Band 1 Frequency | 300MHz |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 1.8 V |
| Number of Operating Bands | 1 |
