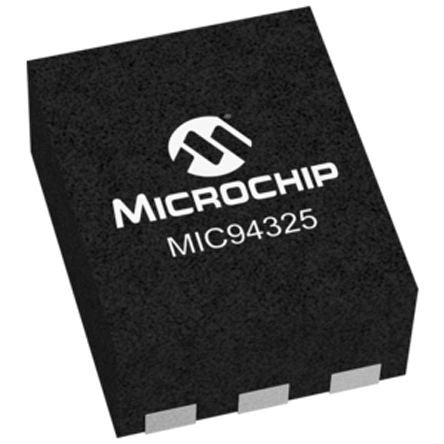

Microchip MIC94325YMT-T5, LDO Regulator, 500mA Adjustable, 1.2 → 3.4 V, ±3% 6-Pin, TDFN [MIC94325YMT-T5]; 144-5905
by Microchip
0₫
Mã kho: 1445905
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 1.2 → 3.4 V |
| Output Type | Adjustable |
| Package Type | TDFN |
| Maximum Output Current | 500mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 1.8 V |
| Maximum Input Voltage | 3.6 V |
| Pin Count | 6 |
| Number of Outputs | 1 |
| Polarity | Positive |
| Accuracy | ±3% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Load Regulation | 10 mV |
| Dimensions | 1.6 x 1.6 x 0.5mm |
| Length | 1.6mm |
| Height | 0.5mm |
| Width | 1.6mm |
| Reference Voltage | 1.1V |
| Line Regulation | 0.01 |
| Enable | Yes |
