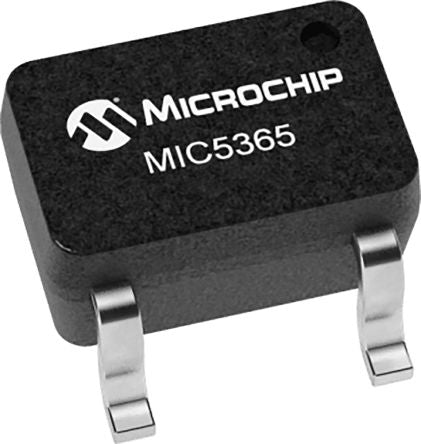

Microchip Technology MIC5365-3.0YC5-TR, LDO Voltage Regulator Controller, 150mA, 3 V, ±3% 5-Pin, SC-75 [MIC5365-3.0YC5-TR]; 177-3241
by Microchip
0₫
Mã kho: 1773241
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Dropout Voltage at Maximum Current | 380 mV @ 150 mA |
Output Voltage | 3 V |
Output Type | Fixed |
Package Type | SC-75 |
Maximum Output Current | 150mA |
Mounting Type | Surface Mount |
Minimum Input Voltage | 2.5 V |
Maximum Input Voltage | 5.5 V |
Pin Count | 5 |
Number of Outputs | 1 |
Quiescent Current | 32µA |
Accuracy | ±3% |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +125 °C |
Enable | Yes |
Dimensions | 2.25 x 1.35 x 1mm |
Length | 2.25mm |
Line Regulation | 0.003 |
Load Regulation | 0.01 |
Height | 1mm |
Width | 1.35mm |
