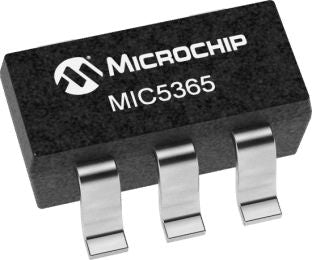

Microchip MIC5365-1.8YC5-TR Linear Voltage Regulator, 150mA, 1.8 V, ±2% 5-Pin, SC-70 [MIC5365-1.8YC5-TR]; 165-6435
by Microchip
0₫
Mã kho: 1656435
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 1.8 V |
| Maximum Output Current | 150mA |
| Package Type | SC-70 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 2.5 V |
| Maximum Input Voltage | 5.5 V |
| Pin Count | 5 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Number of Outputs | 1 |
| Polarity | Positive |
| Width | 1.35mm |
| Series | MIC5365 |
| Height | 1mm |
| Dropout Voltage Measurement Current | 150 mA |
| Line Regulation | 0.003 |
| Length | 2.25mm |
| Accuracy | ±2% |
| Quiescent Current | 29µA |
| Dimensions | 2.25 x 1.35 x 1mm |
| Typical Dropout Voltage @ Current | 180 mV @ 150 mA |
| Load Regulation | 0.01 |
