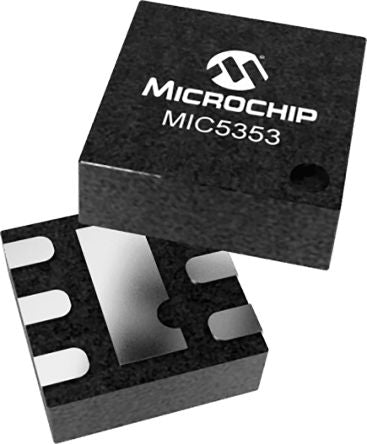

Microchip Technology MIC5353-3.3YMT-TR, LDO Voltage Regulator Controller, 500mA, 3.3 V, ±3% 6-Pin, MLF [MIC5353-3.3YMT-TR]; 177-3219
by Microchip
0₫
Mã kho: 1773219
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Dropout Voltage at Maximum Current | 350 mV @ 500 mA |
| Output Voltage | 3.3 V |
| Output Type | Fixed |
| Package Type | MLF |
| Maximum Output Current | 500mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 2.6 V |
| Maximum Input Voltage | 6 V |
| Pin Count | 6 |
| Number of Outputs | 1 |
| Quiescent Current | 90µA |
| Accuracy | ±3% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 1.6 x 1.6 x 0.5mm |
| Load Regulation | 0.02 |
| Enable | Yes |
| Width | 1.6mm |
| Length | 1.6mm |
| Line Regulation | 0.6 %/V |
| Height | 0.5mm |
