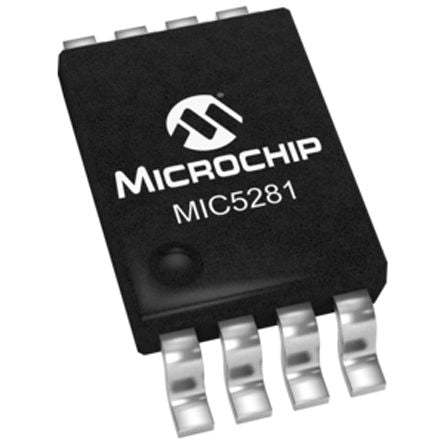

Microchip MIC5281YMME Linear Voltage Regulator, 25mA, Adjustable, 1.27 → 5.5 V, ±3% 8-Pin, MSOP [MIC5281YMME]; 159-7555
by Microchip
0₫
Mã kho: 1597555
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 1.27 → 5.5 V |
| Maximum Output Current | 25mA |
| Package Type | MSOP |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 6 V dc |
| Maximum Input Voltage | 120 V dc |
| Pin Count | 8 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Number of Outputs | 1 |
| Polarity | Positive |
| Accuracy | ±3% |
| Reference Voltage | 1.308V |
| Length | 3mm |
| Line Regulation | ±0.5 % |
| Dropout Voltage Measurement Current | 25 mA |
| Load Regulation | ±0.5 %/V |
| Height | 0.86mm |
| Width | 3mm |
| Series | MIC528x |
| Dimensions | 3 x 3 x 0.86mm |
| Typical Dropout Voltage @ Current | 3V |
| Quiescent Current | 11µA |
