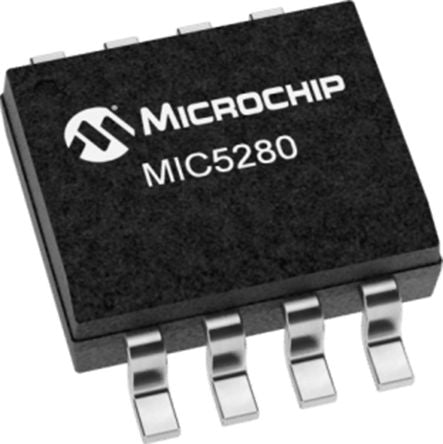

Microchip Technology MIC5280YME, LDO Regulator, 25mA Adjustable, 1.21 → 5 V, ±3% 8-Pin, SOIC [MIC5280YME]; 177-0717
by Microchip
0₫
Mã kho: 1770717
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Dropout Voltage at Maximum Current | 1500 mV @ 25 mA |
| Output Voltage | 1.21 → 5 V |
| Output Type | Adjustable |
| Package Type | SOIC |
| Maximum Output Current | 25mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 4.5 V |
| Maximum Input Voltage | 120 V |
| Pin Count | 8 |
| Number of Outputs | 1 |
| Quiescent Current | 31 (Typ.)µA |
| Accuracy | ±3% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Line Regulation | ±0.5 % |
| Length | 4.93mm |
| Width | 3.94mm |
| Dimensions | 4.93 x 3.94 x 1.5mm |
| Load Regulation | ±0.5 % |
| Enable | Yes |
| Height | 1.5mm |
