![Microchip MIC5239YMM 1597559](http://nguyenxuong.com/cdn/shop/products/R9113026-01_444x444.jpg?v=1594208693)

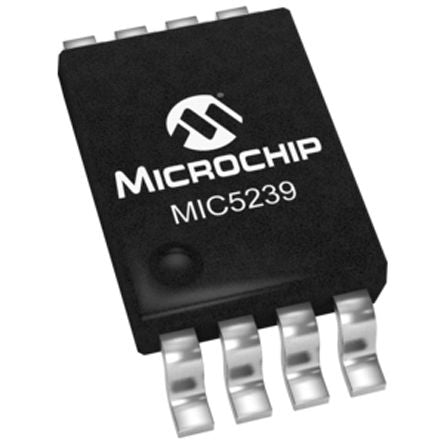

Microchip MIC5239YMM, LDO Regulator, 500mA Adjustable, ±2% 8-Pin, MSOP [MIC5239YMM]; 159-7559
by Microchip
0₫
Mã kho: 1597559
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Output Type | Adjustable |
Package Type | MSOP |
Maximum Output Current | 500mA |
Mounting Type | Surface Mount |
Minimum Input Voltage | 2.3 V |
Maximum Input Voltage | 30 V |
Pin Count | 8 |
Number of Outputs | 1 |
Polarity | Positive |
Quiescent Current | 23µA |
Accuracy | ±2% |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +125 °C |
Reference Voltage | 1.23V |
Line Regulation | 0.005 |
Enable | Yes |
Width | 3.5mm |
Dimensions | 6.5 x 3.5 x 1.6mm |
Load Regulation | 30 mV |
Height | 1.6mm |
Length | 6.5mm |
