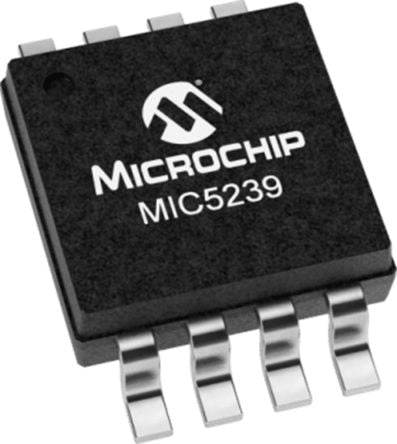

Microchip Technology MIC5239-5.0YMM, LDO Regulator, 500mA, 5 V, ±2% 8-Pin, MSOP [MIC5239-5.0YMM]; 177-0696
by Microchip
0₫
Mã kho: 1770696
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5 V |
| Dropout Voltage at Maximum Current | 350 mV @ 500 mA |
| Output Type | Fixed |
| Package Type | MSOP |
| Maximum Output Current | 500mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 2.3 V |
| Maximum Input Voltage | 30 V |
| Pin Count | 8 |
| Number of Outputs | 1 |
| Quiescent Current | 23µA |
| Accuracy | ±2% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Enable | Yes |
| Dimensions | 3 x 3 x 0.92mm |
| Length | 3mm |
| Line Regulation | 0.005 |
| Height | 0.92mm |
| Width | 3mm |
| Load Regulation | 30 mV |
