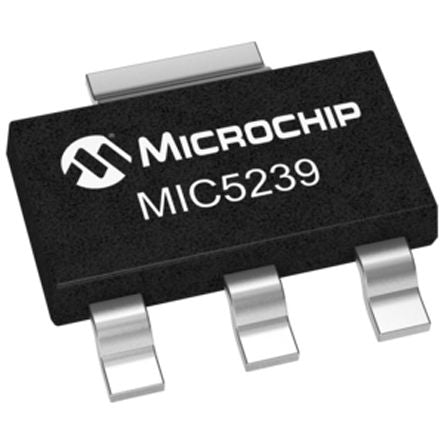

Microchip MIC5239-1.8YS, LDO Regulator, 500mA, 1.8 V, ±2% 3+Tab-Pin, SOT-223 [MIC5239-1.8YS]; 159-7565
by Microchip
0₫
Mã kho: 1597565
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 1.8 V |
| Output Type | Fixed |
| Package Type | SOT-223 |
| Maximum Output Current | 500mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 2.3 V |
| Maximum Input Voltage | 30 V |
| Pin Count | 3+Tab |
| Polarity | Positive |
| Number of Outputs | 1 |
| Quiescent Current | 23µA |
| Accuracy | ±2% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Load Regulation | 30 mV |
| Line Regulation | 0.005 |
| Length | 6.5mm |
| Reference Voltage | 1.23V |
| Height | 1.6mm |
| Dimensions | 6.5 x 3.5 x 1.6mm |
| Width | 3.5mm |
