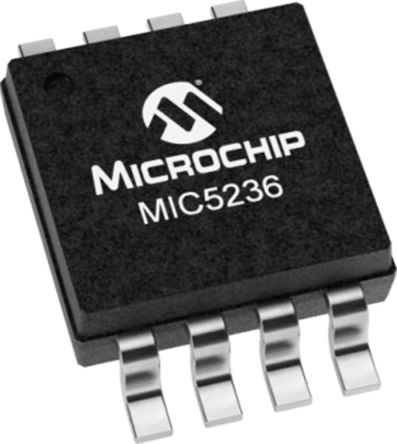

Microchip Technology MIC5236-3.3YM, LDO Regulator, 150mA, 3.3 V, ±2% 8-Pin, SOIC [MIC5236-3.3YM]; 177-0457
by Microchip
0₫
Mã kho: 1770457
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Dropout Voltage at Maximum Current | 500 mV @ 150 mA |
| Output Voltage | 3.3 V |
| Output Type | Fixed |
| Package Type | SOIC |
| Maximum Output Current | 150mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 2.3 V |
| Maximum Input Voltage | 30 V |
| Pin Count | 8 |
| Number of Outputs | 1 |
| Quiescent Current | 20µA |
| Accuracy | ±2% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 5 x 3.99 x 1.63mm |
| Line Regulation | 0.01 |
| Height | 1.63mm |
| Length | 5mm |
| Width | 3.99mm |
| Load Regulation | 0.01 |
| Enable | Yes |
