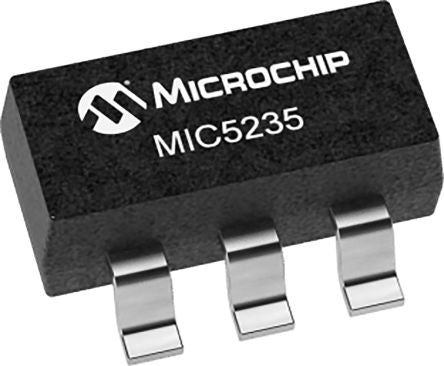

Microchip Technology MIC5235YM5-TR, LDO Voltage Regulator Controller, 150mA Adjustable, ±2% 5-Pin, SOT-23 [MIC5235YM5-TR]; 177-2913
by Microchip
0₫
Mã kho: 1772913
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Dropout Voltage at Maximum Current | 500 mV @ 150 mA |
| Output Type | Adjustable |
| Package Type | SOT-23 |
| Maximum Output Current | 150mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 2.3 V |
| Maximum Input Voltage | 24 V |
| Pin Count | 5 |
| Number of Outputs | 1 |
| Accuracy | ±2% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 1.1mm |
| Line Regulation | 0.04 (Typ.) % |
| Dimensions | 2.9 x 1.6 x 1.1mm |
| Load Regulation | 0.01 |
| Width | 1.6mm |
| Length | 2.9mm |
