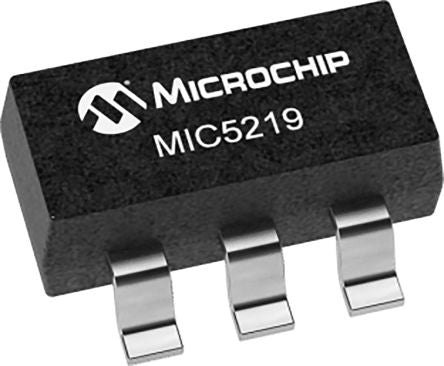

Microchip Technology MIC5219YM5-TR, LDO Voltage Regulator Controller, 500mA Adjustable, ±2% 5-Pin, SOT-23 [MIC5219YM5-TR]; 177-2907
by Microchip
0₫
Mã kho: 1772907
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Dropout Voltage at Maximum Current | 600 mV @ 500 mA |
Output Type | Adjustable |
Package Type | SOT-23 |
Maximum Output Current | 500mA |
Mounting Type | Surface Mount |
Minimum Input Voltage | 2.5 V |
Maximum Input Voltage | 12 V |
Pin Count | 5 |
Number of Outputs | 1 |
Accuracy | ±2% |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +125 °C |
Load Regulation | 0.007 |
Height | 1.1mm |
Dimensions | 2.9 x 1.6 x 1.1mm |
Line Regulation | 0.1 %/V |
Length | 2.9mm |
Width | 1.6mm |
