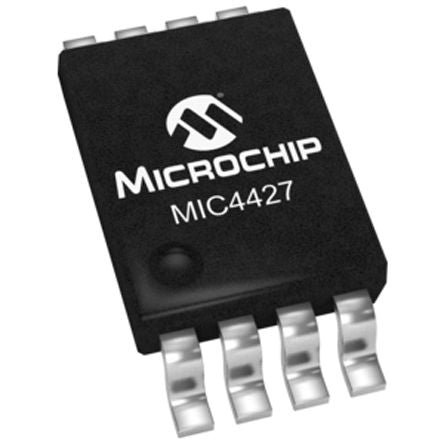

Microchip MIC4427YMM-TR Dual Low Side MOSFET Power Driver, 1.5A 8-Pin, MSOP [MIC4427YMM-TR]; 165-4278
by Microchip
0₫
Mã kho: 1654278
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Drivers | 2 |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 18 V |
| Topology | Low Side |
| Mounting Type | Surface Mount |
| Peak Output Current | 1.5A |
| Number of Outputs | 2 |
| Polarity | Non-Inverting |
| Package Type | MSOP |
| Pin Count | 8 |
| Input Logic Compatibility | CMOS, TTL |
| High and Low Sides Dependency | Independent |
| Fall Time | 40ns |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 3.05 x 3.1 x 0.89mm |
| Time Delay | 60ns |
| Rise Time | 40ns |
| Maximum Operating Temperature | +85 °C |
| Width | 3.1mm |
| Height | 0.89mm |
| Length | 3.05mm |
