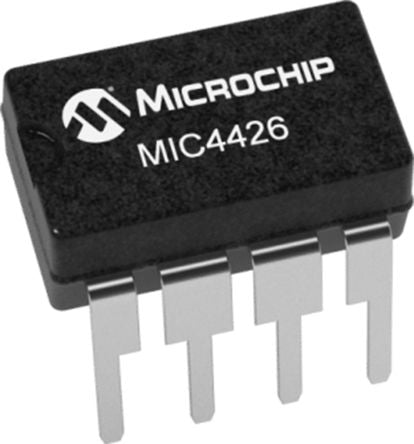

Microchip Technology MIC4426ZN Dual Low Side MOSFET Power Driver, 1.5A 8-Pin, DIP [MIC4426ZN]; 177-0418
by Microchip
0₫
Mã kho: 1770418
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Drivers | 2 |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 18 V |
| Topology | Low Side |
| Mounting Type | Through Hole |
| Peak Output Current | 1.5A |
| Number of Outputs | 2 |
| Package Type | DIP |
| Pin Count | 8 |
| Input Logic Compatibility | CMOS, TTL |
| High and Low Sides Dependency | Independent |
| Dimensions | 0.37 x 0.32 x 0.13in |
| Length | 9.4mm |
| Fall Time | 40ns |
| Rise Time | 40ns |
| Height | 3.3mm |
| Minimum Operating Temperature | 0 °C |
| Width | 8.13mm |
| Time Delay | 60ns |
| Maximum Operating Temperature | +70 °C |
