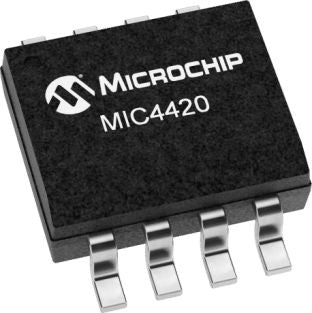

Microchip MIC4420YM Low Side MOSFET Power Driver, 6A 8-Pin, SOIC [MIC4420YM]; 165-4086
by Microchip
0₫
Mã kho: 1654086
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Drivers | 1 |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 18 V |
| Topology | Low Side |
| Mounting Type | Surface Mount |
| Peak Output Current | 6A |
| Number of Outputs | 1 |
| Polarity | Non-Inverting |
| Package Type | SOIC |
| Pin Count | 8 |
| Input Logic Compatibility | CMOS, TTL |
| Rise Time | 35ns |
| Time Delay | 75ns |
| Dimensions | 4.93 x 3.94 x 1.48mm |
| Length | 4.93mm |
| Maximum Operating Temperature | +85 °C |
| Height | 1.48mm |
| Width | 3.94mm |
| Fall Time | 35ns |
| Minimum Operating Temperature | -40 °C |
