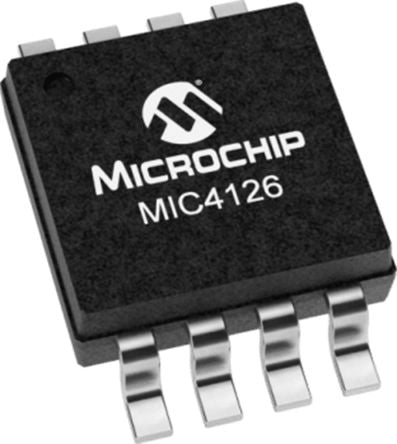

Microchip Technology MIC4126YME Dual Low Side MOSFET Power Driver, 1.5 (Typ.)A 8-Pin, SOIC [MIC4126YME]; 177-0713
by Microchip
0₫
Mã kho: 1770713
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Drivers | 2 |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 20 V |
| Topology | Low Side |
| Mounting Type | Surface Mount |
| Peak Output Current | 1.5 (Typ.)A |
| Number of Outputs | 2 |
| Package Type | SOIC |
| Pin Count | 8 |
| Input Logic Compatibility | CMOS, TTL |
| High and Low Sides Dependency | Independent |
| Minimum Operating Temperature | -40 °C |
| Width | 3.94mm |
| Fall Time | 40ns |
| Maximum Operating Temperature | +125 °C |
| Rise Time | 40ns |
| Length | 4.93mm |
| Dimensions | 4.93 x 3.94 x 1.48mm |
| Time Delay | 70ns |
| Height | 1.48mm |
