![Microchip MIC4120YME 1770399](http://nguyenxuong.com/cdn/shop/products/Y1770399-01_443x444.jpg?v=1594274603)

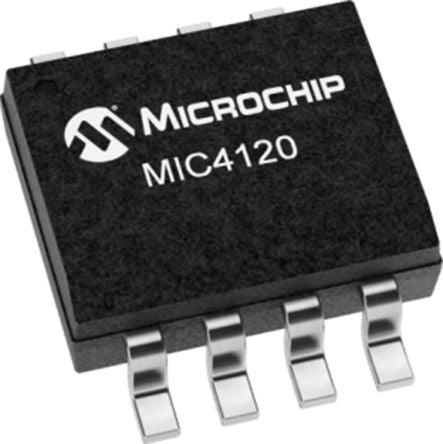

Microchip Technology MIC4120YME Low Side MOSFET Power Driver, 6A 8-Pin, SOIC [MIC4120YME]; 177-0399
by Microchip
0₫
Mã kho: 1770399
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Drivers | 1 |
Minimum Operating Supply Voltage | 4.5 V |
Maximum Operating Supply Voltage | 20 V |
Topology | Low Side |
Mounting Type | Surface Mount |
Peak Output Current | 6A |
Number of Outputs | 1 |
Polarity | Non-Inverting |
Package Type | SOIC |
Pin Count | 8 |
Input Logic Compatibility | CMOS, TTL |
Rise Time | 35ns |
Maximum Operating Temperature | +125 °C |
Dimensions | 4.93 x 3.94 x 1.48mm |
Time Delay | 100ns |
Height | 1.48mm |
Width | 3.94mm |
Length | 4.93mm |
Minimum Operating Temperature | -40 °C |
Fall Time | 35ns |
