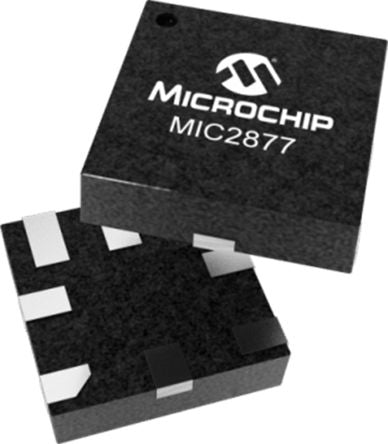

Microchip MIC2877-5.0YFT-TR, Buck/Boost Converter Step Up 2A, 2 MHz 8-Pin, FTQFN [MIC2877-5.0YFT-TR]; 175-3181
by Microchip
0₫
Mã kho: 1753181
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Regulator Function | Step Up |
Maximum Output Current | 2A |
Number of Outputs | 1 |
Line Regulation | 0.003 |
Load Regulation | 0.2 %/A |
Mounting Type | Surface Mount |
Package Type | FTQFN |
Pin Count | 8 |
Output Type | Fixed |
Maximum Switching Frequency | 2 MHz |
Switching Regulator | Yes |
Efficiency | 0.95 |
Dimensions | 2 x 2 x 0.5mm |
Height | 0.5mm |
Maximum Operating Temperature | +85 °C |
Length | 2mm |
Minimum Operating Temperature | -40 °C |
Maximum Input Voltage | 5.5 V |
Width | 2mm |
Minimum Input Voltage | 2.5 V |
Maximum Output Voltage | 5 V |
