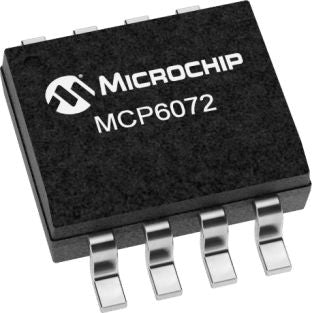

MCP6072T-E/SN Microchip, Precision, Op Amp, RRIO, 1.2MHz, 6 V, 8-Pin SOIC [MCP6072T-E/SN]; 165-6431
by Microchip
0₫
Mã kho: 1656431
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Precision |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 6 V |
| Typical Gain Bandwidth Product | 1.2MHz |
| Output Type | Rail to Rail |
| Typical Slew Rate | 0.5V/µs |
| Maximum Operating Frequency | 10 kHz |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Typical Voltage Gain | 115 (Open Loop) dB |
| Length | 4.9mm |
| Minimum Input Voltage | 1.8 V |
| Dimensions | 4.9 x 3.9 x 1.5mm |
| Typical Input Voltage Noise Density | 19nV/√Hz |
| Input Offset Current | 1pA |
| Input Voltage Range | 1.8 → 6 V |
| Height | 1.5mm |
| Output Current | ±30 mA |
| Offset Voltage | 150µV |
| Maximum Input Voltage | 6 V |
| Width | 3.9mm |
| Rail to Rail | Rail to Rail Input/Output |
