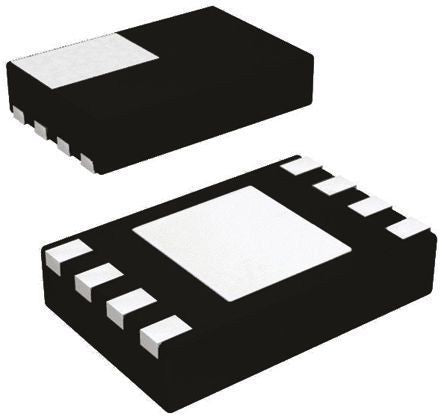

![Microchip MCP6072T-E/MNY 1653559](http://nguyenxuong.com/cdn/shop/products/R7673557-01_06ff371d-8653-4d74-8be8-83c4b3172998_444x419.jpg?v=1594430921)
MCP6072T-E/MNY Microchip, Precision, Op Amp, RRIO, 1.2MHz, 1.8 → 6 V, 8-Pin TDFN [MCP6072T-E/MNY]; 165-3559
by Microchip
0₫
Mã kho: 1653559
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Amplifier Type | Precision |
Mounting Type | Surface Mount |
Package Type | TDFN |
Power Supply Type | Single |
Number of Channels per Chip | 2 |
Pin Count | 8 |
Typical Single Supply Voltage | 1.8 → 6 V |
Typical Gain Bandwidth Product | 1.2MHz |
Typical Slew Rate | 0.5V/µs |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +125 °C |
Height | 0.75mm |
Length | 2mm |
Rail to Rail | Rail to Rail Input/Output |
Width | 3mm |
Dimensions | 2 x 3 x 0.75mm |
Typical Input Voltage Noise Density | 19nV/√Hz |
Typical Voltage Gain | 115 dB |
