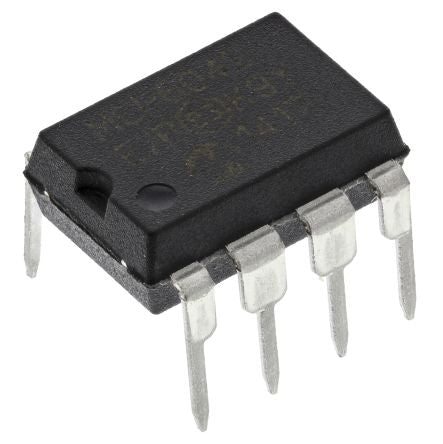

MCP6042-E/P Microchip,, Op Amp, RRIO, 14kHz, 1.4 → 6 V, 8-Pin PDIP [MCP6042-E/P]; 145-8981
by Microchip
0₫
Mã kho: 1458981
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | General Purpose |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 1.4 → 6 V |
| Typical Gain Bandwidth Product | 14kHz |
| Typical Slew Rate | 3V/ms |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 4.9 x 3.9 x 1.25mm |
| Typical Input Voltage Noise Density | 170nV/√Hz |
| Length | 4.9mm |
| Width | 3.9mm |
| Rail to Rail | Rail to Rail Input/Output |
| Height | 1.25mm |
| Typical Voltage Gain | 115 dB |
