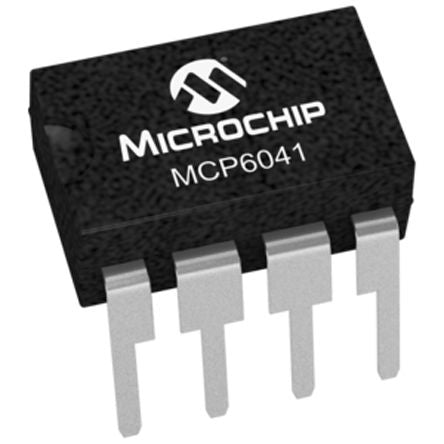

MCP6041-I/P Microchip,, Op Amp, RRIO, 14kHz, 3 V, 5 V, 8-Pin PDIP [MCP6041-I/P]; 165-4827
by Microchip
0₫
Mã kho: 1654827
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | General Purpose |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 3 V, 5 V |
| Typical Gain Bandwidth Product | 14kHz |
| Typical Slew Rate | 0.003V/µs |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Length | 9.27mm |
| Rail to Rail | Rail to Rail Input/Output |
| Dimensions | 9.27 x 6.35 x 3.3mm |
| Typical Voltage Gain | 115 dB |
| Width | 6.35mm |
| Height | 3.3mm |
| Typical Input Voltage Noise Density | 170nV/√Hz |
