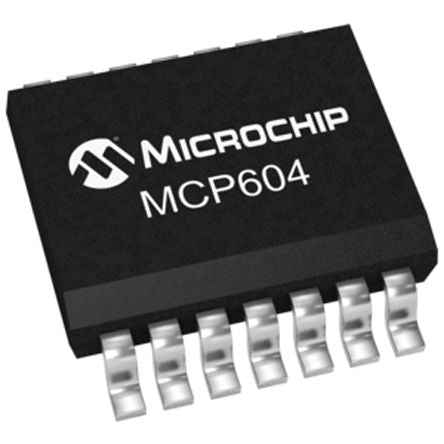

MCP604-I/SL Microchip,, Op Amp, RRO, 2.8MHz, 3 V, 5 V, 14-Pin SOIC [MCP604-I/SL]; 628-3497
by Microchip
0₫
Mã kho: 6283497
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | General Purpose |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Power Supply Type | Single |
| Number of Channels per Chip | 4 |
| Pin Count | 14 |
| Typical Single Supply Voltage | 3 V, 5 V |
| Typical Gain Bandwidth Product | 2.8MHz |
| Typical Slew Rate | 2.3V/µs |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Length | 8.65mm |
| Typical Voltage Gain | 115 dB |
| Rail to Rail | Rail to Rail Output |
| Width | 3.9mm |
| Dimensions | 8.65 x 3.9 x 1.25mm |
| Typical Input Voltage Noise Density | 29nV/√Hz |
| Height | 1.25mm |
