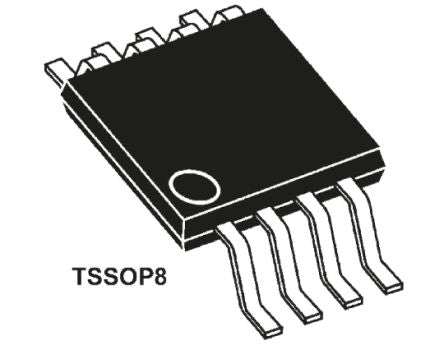

MCP6022-I/ST Microchip, Precision, Op Amp, RRIO, 10MHz, 3 V, 5 V, 8-Pin TSSOP [MCP6022-I/ST]; 144-9254
by Microchip
0₫
Mã kho: 1449254
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Precision |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 3 V, 5 V |
| Typical Gain Bandwidth Product | 10MHz |
| Typical Slew Rate | 7V/µs |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 4.4mm |
| Typical Voltage Gain | 110 dB |
| Rail to Rail | Rail to Rail Input/Output |
| Height | 1mm |
| Length | 3mm |
| Dimensions | 3 x 4.4 x 1mm |
| Typical Input Voltage Noise Density | 8.7nV/√Hz |
