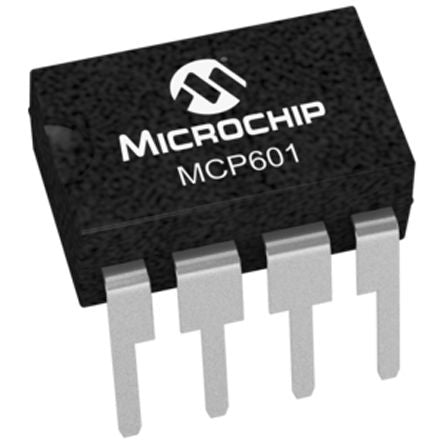

MCP601-E/P Microchip,, Op Amp, RRO, 2.8MHz, 2.7 → 6 V, 8-Pin PDIP [MCP601-E/P]; 165-2123
by Microchip
0₫
Mã kho: 1652123
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | General Purpose |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 2.7 → 6 V |
| Typical Gain Bandwidth Product | 2.8MHz |
| Typical Slew Rate | 2.3V/µs |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Height | 4.95mm |
| Typical Voltage Gain | 115 dB |
| Typical Input Voltage Noise Density | 29nV/√Hz |
| Width | 0.28in |
| Rail to Rail | Rail to Rail Output |
| Dimensions | 0.4 x 0.28 x 0.195in |
| Length | 10.16mm |
