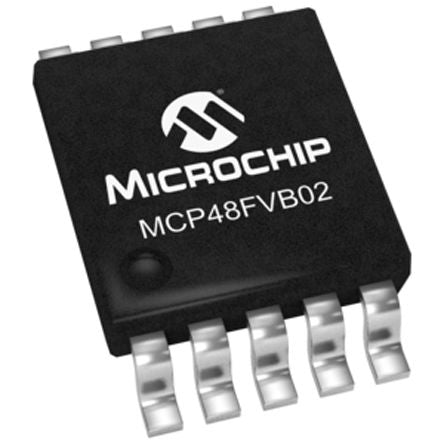

Microchip MCP48FVB02-E/UN, 2-Channel 8 bit Serial DAC, 10-Pin MSOP [MCP48FVB02-E/UN]; 159-7570
by Microchip
0₫
Mã kho: 1597570
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Number of DAC Channels | 2 |
| Digital Interface Type | Serial (SPI) |
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 1.8 → 2.7 V, 2.7 → 5.5 V |
| Voltage Reference | Internal |
| Architecture | Resistor String |
| Pin Count | 10 |
| Maximum Settling Time | 7.8µs |
| Output Polarity | Bipolar |
| Full Scale Error | 4.5LSB |
| Length | 3mm |
| Dimensions | 3 x 3 x 0.95mm |
| Height | 0.95mm |
| Integral Nonlinearity Error | +0.5LSB |
| Width | 3mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
