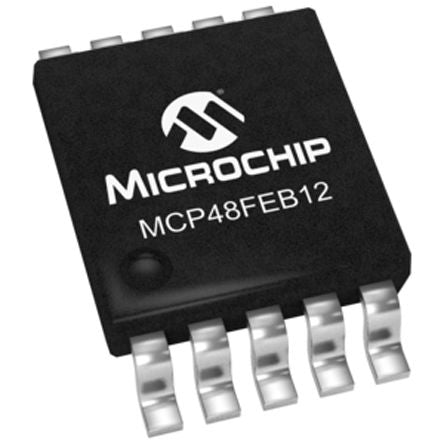

Microchip MCP48FEB12-E/UN, 2-Channel 10 bit DAC, 10-Pin MSOP [MCP48FEB12-E/UN]; 159-7568
by Microchip
0₫
Mã kho: 1597568
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 10 bit |
| Number of DAC Channels | 2 |
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 1.8 → 5.5 V |
| Voltage Reference | External, Internal |
| Architecture | Resistor String |
| Pin Count | 10 |
| Maximum Settling Time | 7.8µs |
| Output Polarity | Bipolar |
| Full Scale Error | 18LSB |
| Integral Nonlinearity Error | 1.5LSB |
| Dimensions | 3 x 3 x 0.95mm |
| Length | 3mm |
| Width | 3mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 0.95mm |
