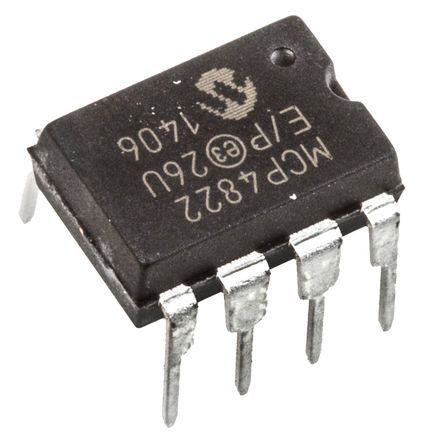

Microchip MCP4822-E/P, 2-Channel 12 bit Serial DAC, 8-Pin PDIP [MCP4822-E/P]; 889-5831
by Microchip
0₫
Mã kho: 8895831
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 12 bit |
| Number of DAC Channels | 2 |
| Digital Interface Type | Serial (SPI/Microwire) |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 5 V |
| Voltage Reference | Internal |
| Architecture | Resistor String |
| Pin Count | 8 |
| Maximum Settling Time | 4.5µs |
| Output Polarity | Unipolar |
| Full Scale Error | ±2%FSR |
| Width | 6.35mm |
| Integral Nonlinearity Error | ±12LSB |
| Height | 3.3mm |
| Length | 9.4mm |
| Dimensions | 9.4 x 6.35 x 3.3mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
