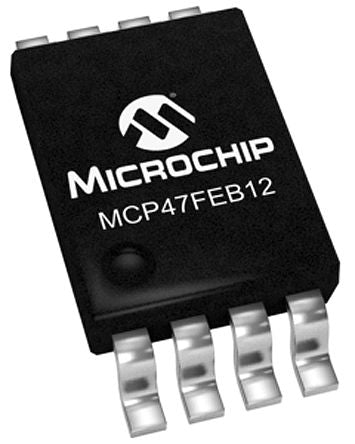

Microchip MCP47FEB12A0-E/ST, 2-Channel 10 bit Serial DAC, 8-Pin TSSOP [MCP47FEB12A0-E/ST]; 146-0302
by Microchip
0₫
Mã kho: 1460302
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 10 bit |
| Number of DAC Channels | 2 |
| Digital Interface Type | Serial (I2C) |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 1.8 → 5.5 V |
| Voltage Reference | External, Internal |
| Architecture | Resistor String |
| Pin Count | 8 |
| Maximum Settling Time | 6µs |
| Output Polarity | Bipolar |
| Full Scale Error | 4.5LSB |
| Length | 4.5mm |
| Width | 3.1mm |
| Integral Nonlinearity Error | ±0.5LSB |
| Dimensions | 4.5 x 3.1 x 1.05mm |
| Height | 1.05mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
