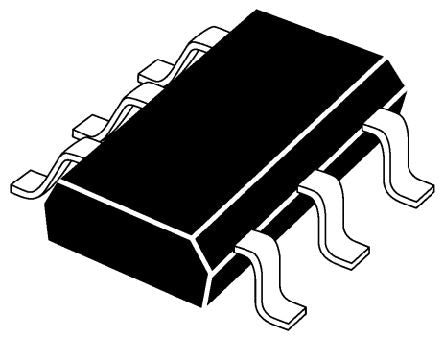

Microchip MCP4725A0T-E/CH, 12 bit Serial DAC, 6-Pin SOT-23A [MCP4725A0T-E/CH]; 887-7316
by Microchip
0₫
Mã kho: 8877316
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 12 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Serial (I2C) |
| Mounting Type | Surface Mount |
| Package Type | SOT-23A |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 3.3 V, 5 V |
| Voltage Reference | External |
| Architecture | Resistor String |
| Pin Count | 6 |
| Maximum Settling Time | 6µs |
| Output Polarity | Unipolar |
| Full Scale Error | ±2%FSR |
| Minimum Operating Temperature | -40 °C |
| Height | 1.3mm |
| Integral Nonlinearity Error | ±14.5LSB |
| Width | 1.8mm |
| Maximum Operating Temperature | +125 °C |
| Length | 3.1mm |
| Dimensions | 3.1 x 1.8 x 1.3mm |
