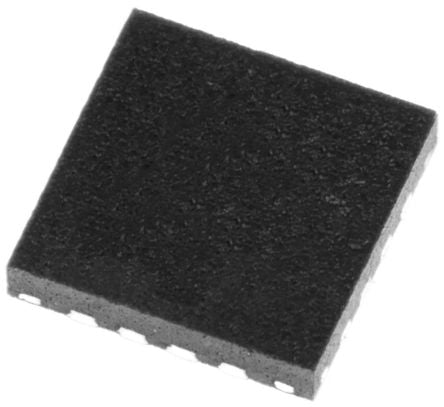

MCP4251-103E/ML, Digital Potentiometer 10kΩ 257-Position 2-Channel SPI 16-Pin QFN [MCP4251-103E/ML]; 165-1962
by Microchip
0₫
Mã kho: 1651962
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Control Interface | SPI |
| Resistance Value | 10kΩ |
| Number of Positions | 257 |
| Memory Type | Volatile |
| Number of Pots per Package | 2 |
| Mounting Type | Surface Mount |
| Package Type | QFN |
| Pin Count | 16 |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 1.8 → 5.5 V |
| Dimensions | 4 x 4 x 0.95mm |
| Height | 0.95mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 4mm |
| Length | 4mm |
