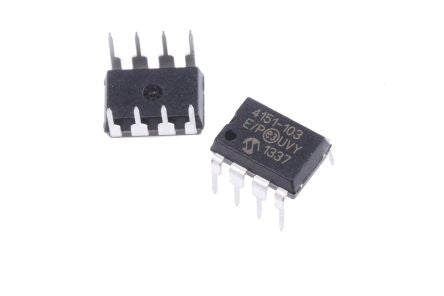

MCP4151-103E/P, Digital Potentiometer 10kΩ 257-Position Linear Serial-SPI 8-Pin PDIP [MCP4151-103E/P]; 723-9930
by Microchip
0₫
Mã kho: 7239930
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Control Interface | Serial-SPI |
| Resistance Value | 10kΩ |
| Number of Positions | 257 |
| Taper Type | Linear |
| Memory Type | Volatile |
| Number of Pots per Package | 1 |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 8 |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 1.8 to 5.5 V |
| Dimensions | 0.4 x 0.28 x 0.195in |
| Height | 4.95mm |
| Maximum Operating Temperature | +125 °C |
| Length | 10.16mm |
| Minimum Operating Temperature | -40 °C |
| Width | 0.28in |
