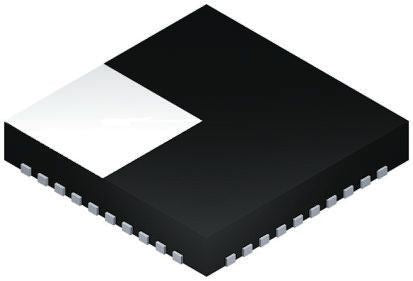

MCP3914A1-E/MV, Analogue Front End IC, 8-Channel 24 bit, 125ksps SPI, 40-Pin UQFN [MCP3914A1-E/MV]; 799-0222
by Microchip
0₫
Mã kho: 7990222
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Application | Audio Voice Recognition, Automotive, Energy Metering and Power Measurement, Medical and Power Monitoring, Polyphase Energy Meter, Portable Instrumentation |
Number of ADCs | 1 |
Resolution | 24 bit |
Sampling Rate | 125ksps |
Interface Type | SPI |
Number of Channels per Chip | 8 |
Mounting Type | Surface Mount |
Package Type | UQFN |
Pin Count | 40 |
Power Supply Type | Single |
Dimensions | 5 x 5 x 0.5mm |
Height | 0.5mm |
Maximum Operating Supply Voltage | 3.6 V |
Minimum Operating Supply Voltage | 2.7 V |
Width | 5mm |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +125 °C |
