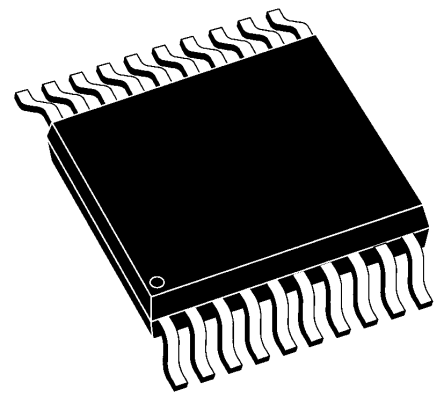

MCP3901A0-I/SS, Energy Meter Front End, 2-Channel 16 bit, 64ksps SPI, 20-Pin SSOP [MCP3901A0-I/SS]; 145-9351
by Microchip
0₫
Mã kho: 1459351
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Application | Automotive Radar, Data Acquisition, SONAR |
Number of ADCs | 2 |
Resolution | 16 bit |
Sampling Rate | 64ksps |
Interface Type | SPI |
Number of Channels per Chip | 2 |
Mounting Type | Surface Mount |
Package Type | SSOP |
Pin Count | 20 |
Power Supply Type | Single |
Dimensions | 7.2 x 5.3 x 1.75mm |
Height | 1.75mm |
Length | 7.2mm |
Maximum Operating Supply Voltage | 5.5 V |
Width | 5.3mm |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
Minimum Operating Supply Voltage | 2.7 V, 4.5 V |
