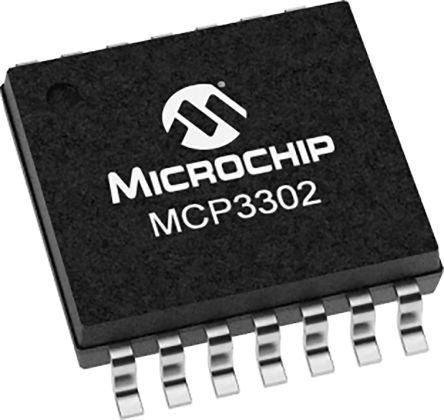

Microchip Technology MCP3302-CI/ST, 13 bit Serial ADC Differential Input, 14-Pin TSSOP [MCP3302-CI/ST]; 177-1638
by Microchip
0₫
Mã kho: 1771638
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 13 bit |
Number of ADCs | 1 |
Digital Interface Type | Serial (SPI) |
Number of Input Channels | 4 |
Mounting Type | Surface Mount |
Sampling Rate | 100ksps |
Architecture | SAR |
Typical Single Supply Voltage | 5 V |
Package Type | TSSOP |
Pin Count | 14 |
Input Signal Type | Differential |
Input Type | Single Ended |
Power Supply Type | Single |
Integral Nonlinearity Error | ±2LSB |
Width | 4.5mm |
Minimum Operating Temperature | -40 °C |
Dimensions | 5.1 x 4.5 x 1.05mm |
Length | 5.1mm |
Automotive Standard | AEC-Q100 |
Maximum Operating Temperature | +85 °C |
Height | 1.05mm |
