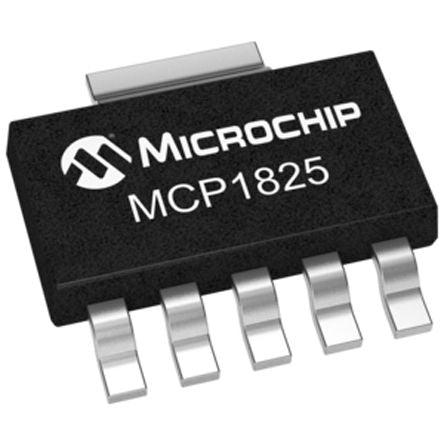

Microchip MCP1825T-3002E/DC, LDO Regulator, 500mA, 3 V, ±0.5%, 2.1 → 6 Vin 5+Tab-Pin, SOT-223 [MCP1825T-3002E/DC]; 669-5102
by Microchip
0₫
Mã kho: 6695102
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 3 V |
| Output Type | Fixed |
| Package Type | SOT-223 |
| Maximum Output Current | 500mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 2.1 V |
| Maximum Input Voltage | 6 V |
| Pin Count | 5+Tab |
| Polarity | Positive |
| Number of Outputs | 1 |
| Quiescent Current | 0.12mA |
| Accuracy | ±0.5% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 1.6mm |
| Length | 6.5mm |
| Line Regulation | 0.05 %/V |
| Load Regulation | 0.005 |
| Dimensions | 6.5 x 3.5 x 1.6mm |
| Enable | Yes |
| Width | 3.5mm |
