![Microchip MCP1825ST-3302E/DB 1772843](http://nguyenxuong.com/cdn/shop/products/R1772843-01_312x239.jpg?v=1594302563)

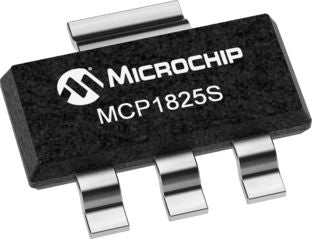

Microchip Technology MCP1825ST-3302E/DB, LDO Voltage Regulator Controller, 500mA, 3.3 V 3-Pin, SOT-223 [MCP1825ST-3302E/DB]; 177-2843
by Microchip
0₫
Mã kho: 1772843
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Dropout Voltage at Maximum Current | 350 mV @ 500 mA |
Output Voltage | 3.3 V |
Output Type | Fixed |
Package Type | SOT-223 |
Maximum Output Current | 500mA |
Mounting Type | Surface Mount |
Minimum Input Voltage | 2.1 V |
Maximum Input Voltage | 6 V |
Pin Count | 3 |
Number of Outputs | 1 |
Quiescent Current | 220µA |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +125 °C |
Length | 6.7mm |
Line Regulation | ±0.16 %/V |
Height | 1.7mm |
Width | 3.7mm |
Dimensions | 6.7 x 3.7 x 1.7mm |
Load Regulation | ±1 % |
